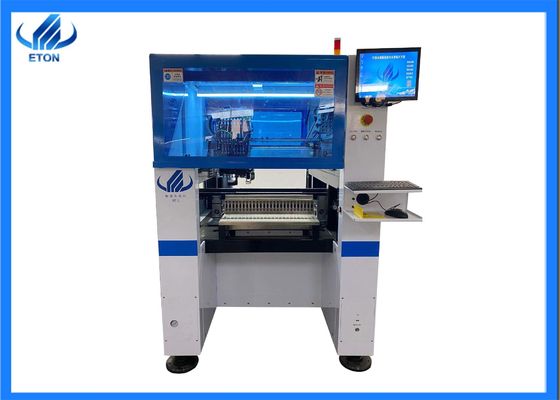

best price smt mounter magnetic linear high speed high precision smt pick and place machine rt-1 with 35000CPH capacity

best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity

Imagem Grande :  best price smt mounter magnetic linear high speed high precision smt pick and place machine rt-1 with 35000CPH capacity

Detalhes do produto:
Lugar de origem: CHINA
Marca: eton
Certificação: ccc,ce,sira
Número do modelo: RT-1
Documento: Folheto PDF do produto
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 unidade
Preço: $33,000.00/unit
Detalhes da embalagem: Embalagem material impermeável e caso de madeira
Tempo de entrega: 30 dias do trabalho
Termos de pagamento: L/C, T/T
Habilidade da fonte: 80 unidades por meses
Descrição de produto detalhada
Comprimento: 1104mm Largura: 1584MM
Altura: 1655MM peso total: 950kg
Tamanho do PWB: 50*50mm~400*350mm braçadeira do PWB; ing: pressão ajustável pneumática
Sistema: windows7 Software: r&d independentemente
Exposição: monitor do tela táctil dispositivo de entrada: teclado, rato
Não da câmera: 2 Poder: 380AC 50HZ
consmption do poder: 6kw modo da montagem: Agrupe a vara do centavo da tomada, vara do centavo da tomada do centavo
Espaço dos componentes: 0.2mm transmissão transportadora: 1200mm
estações dos alimentadores: 60pcs Bocais: 16pcs
Velocidade da montagem: 30000 ~ 35000CPH Altura da montagem: 40mm

1.product details

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH~35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.

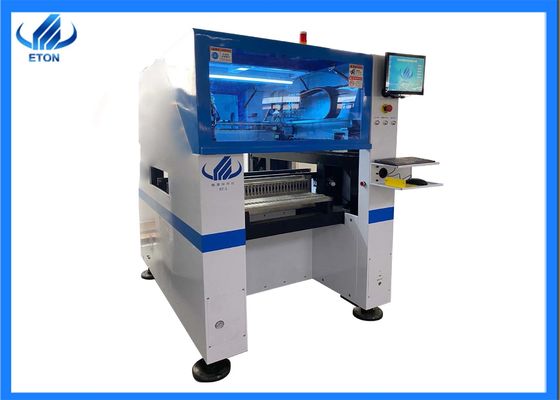

best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 0



  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 2 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

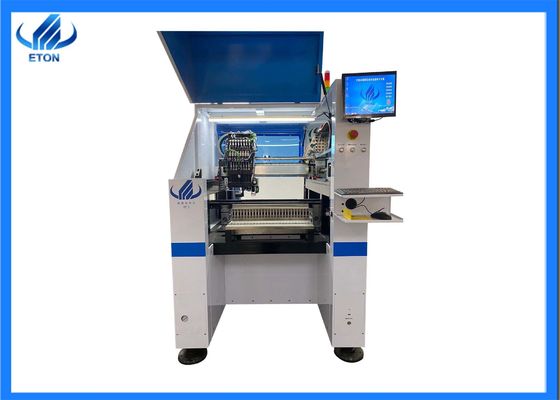

best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 1



2.technical parameter of smt mounter machine

Place of origin Guangdong,China
Model number RT-1
dimension 1104*1584*1655
PCB size 50*50~400*350
PCB thickness 0.1~6mm
Mounting speed 30000~35000CPH
Mounting mode Group picking and separate placing, separate picking and separate placing.
Mounting precision ±0.02cm
Feeder stations 32pcs
nozzles 10pcs
Mounting height 40mm
No.of camera 2 sets of imported camera


3.product parts of smt mounter machine



  • Saline shaft from korea
  • Mark camera from HK vision
  • Grating scale from Renishaw,UK
  • Guideway from IKO Japan
  • Pneumatic components from SMC Japan
  • Sensor from Beckhoff Germany
  • Drag chain from IGUS Germany

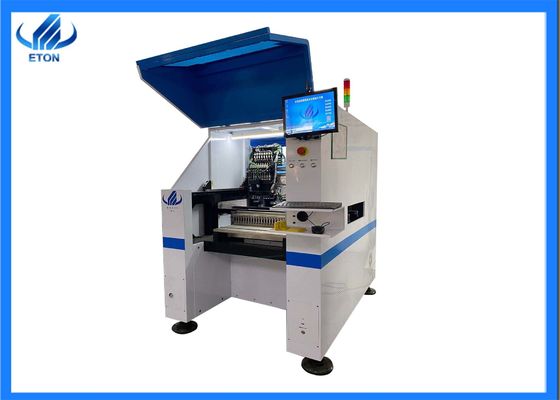

best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 2



4.trade terms of smt mounter machine

Accepted delivery terms EXW, FOB, CIF , CFR
Accepted payment currency USD, CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen


5.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 3

6.trade show

Since the establishment of the company, we have participated in many trade exhibitions at home and abroad, including Guangzhou Guangya exhibition, Turkey lighting exhibition, India lighting exhibition, Pakistan exhibition, India nepcon exhibition, Thailand exhibition, etc.We add a large number of foreign clients every year.

best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 4



7.company profile

In November 2011, Shenzhen ETON automation equipment co., ltd. was established in Shenzhen, China. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT high-speed SMT mounter. Our management policy is sincere operation, concentrate on research and development, manufacturing, intimate service, customers rest assured. Our aim is to create value for customers and benefit for the society. We aspire to be the world's most competitive placement machine and cutting-edge electronic testing equipment manufacturing and service provider.

The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained "shenzhen high-tech enterprise", "national high-tech enterprise", “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.

the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.

ETON s purpose: to create value for customers,creating benefits for society.

ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.

Quality principle: quality first, client-oriented, continuous improvement!

Management policy: sincere business,focus on R&D,manufacturing intentions, considerate service,customer trust.

best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 5







best price smt mounter magnetic linear  high speed high precision smt pick and place machine rt-1 with 35000CPH capacity 6
