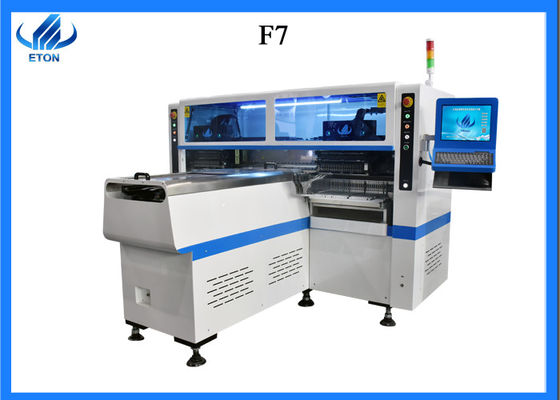

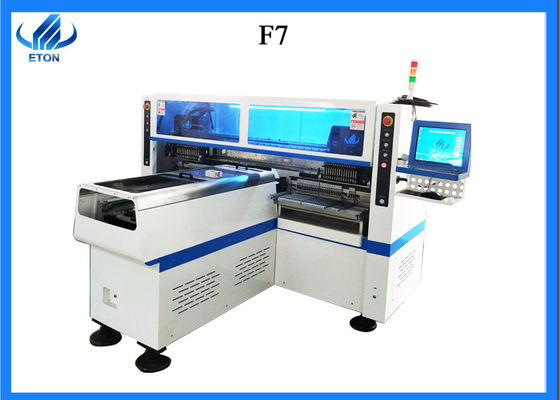

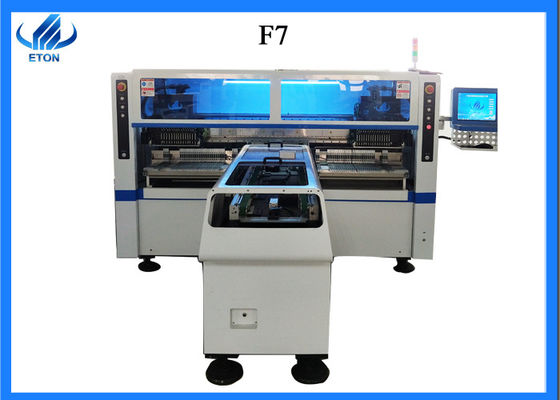

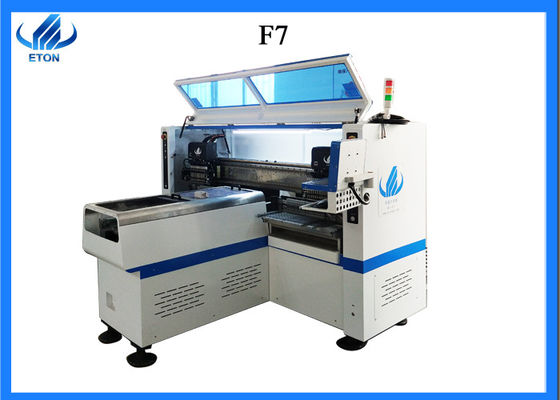

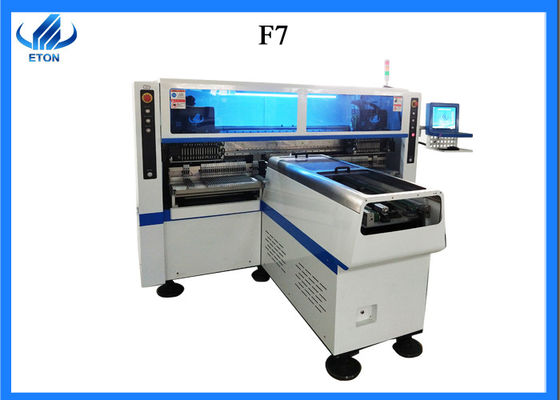

Imagem Grande :  pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine,

Detalhes do produto:
Lugar de origem: CHINA
Marca: eton
Certificação: ccc,ce,sira
Número do modelo: ht-f7
Documento: Folheto PDF do produto
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 unidade
Preço: $75000.00/unit
Detalhes da embalagem: Embalagem material impermeável e caso de madeira
Tempo de entrega: 30 dias do trabalho
Termos de pagamento: L/C, T/T
Habilidade da fonte: 80 unidades por meses
Descrição de produto detalhada
Tamanho do PWB: 80 * 330mm ~ 330 * 1200mm braçadeira do PWB; ing: pressão ajustável pneumática
Sistema: windows7 Software: r&d independentemente
Exposição: monitor do tela táctil dispositivo de entrada: teclado, rato
Não da câmera: 5 Poder: 380AC 50HZ
consmption do poder: 6kw modo da montagem: Grupo de grupo de vara
Espaço dos componentes: 0.2mm estações dos alimentadores: 68PCS
Bocais: 34PCS Velocidade da montagem: 150000CPH~180000CPH
Altura da montagem: 15mm

1.product details

Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.



pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 0





2.product Technical parameters​  of high speed pick and place machine

Model number HT-F7
Dimension 2700*2120*1550mm
PCB size 80*330~1200*330mm
PCB thickness 0.5~5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 68pcs
NO.of nozzles 34pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 1









2.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 5 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 2





2Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 3







6.Company profile

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 4

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 5





pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 6



pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 7





7.Our  clients

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 8



8.FAQ

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 9











pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 10









  • SMT industrial patterns

The SMT/MES industry in China is mainly concentrated in the eastern coastal areas, in which Guangdong, Fujian, Zhejiang, Shanghai, Jiangsu, Shandong, Tianjin, Beijing and Liaoning provinces and cities account for more than 80% of the total SMT/MES. China's SMT/MES industry is bound to form the Pearl River Delta, the Yangtze River Delta, the Bohai Sea around the three-legged trend. China's SMT/MES industry has such a favorable situation, mainly because the relevant departments of the Chinese government attach great importance to the development of electronic and information products manufacturing industry, and have formulated good development policies and introduced policies. Countries and regions with developed electronic information products manufacturing in the world such as the United States, Japan, South Korea, Europe and Taiwan are important factors in transferring electronic manufacturing to the mainland of China.

China's SMT industries are still concentrated in the Pearl River Delta region and the Yangtze River Delta region, which account for more than 90 percent of the total industrial scale, with the Pearl River Delta region alone accounting for 67.5 percent of the total.

From the industry's own development cycle, although China's SMT industry is still in the early stage of development, but has shown a vigorous vitality. At the same time, the SMT industry is also an important basic industry, which is of great significance to promote the structural adjustment and industrial upgrading of China's electronic and information industry manufacturing industry. Promoting the rapid and healthy development of China's SMT industry requires the joint cooperation of all links between upstream and downstream industries.

For the government, the first is to increase support for the SMT industry, especially to strengthen investment in basic research in the fields of basic materials and precision instruments. Second, as an important market supervision department, the government should strengthen the protection of intellectual property rights, actively guide the formulation of China's SMT industry standards, and actively promote and implement them.

For enterprises, one is to change the concept and fully understand the importance of production technology to the development of SMT equipment. only fully familiar with the actual production process, understand the actual production process technical parameters adjustment changes, can really design the SMT equipment in line with the actual production requirements. Second, conform to the trend of lead-free, break through the key technology and realize the serialization of key equipment products. Third, strengthen sales services and develop new models suitable for Chinese enterprises. Fourth, with the help of training certification to form a new model of equipment marketing. Fifth, pay full attention to the cultivation of self-talent and realize technological innovation and healthy development.
