Detalhes do produto:
Condições de Pagamento e Envio:
|
Tamanho do PWB: | comprimento 250mm*any | braçadeira do PWB; ing: | pressão ajustável pneumática |
---|---|---|---|
Sistema: | windows7 | Software: | r&d independentemente |
Exposição: | monitor do tela táctil | dispositivo de entrada: | teclado, rato |
Não da câmera: | 5 | Poder: | 380AC 50HZ |
consmption do poder: | 6kw | modo da montagem: | Grupo de grupo de vara |
Espaço dos componentes: | 0.2mm | estações dos alimentadores: | 64PCS |
Bocais: | 64PCS | Velocidade da montagem: | 200000CPH |
Altura da montagem: | 13mm |
1.product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:5m,50m or any length of flexible strip and roll to roll;RGB

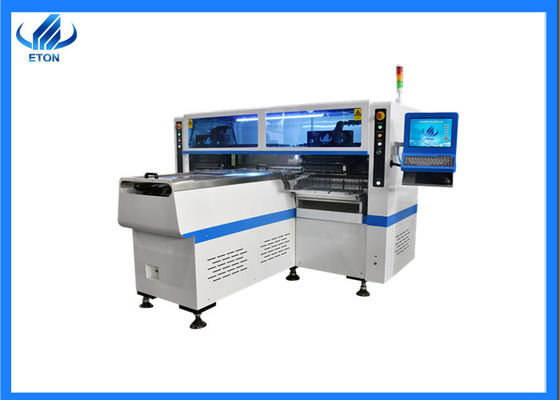

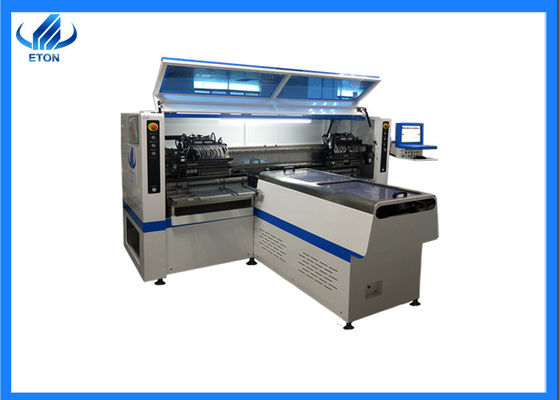

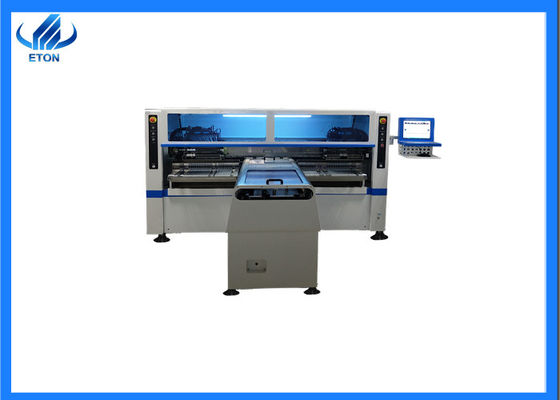

2.product Technical parameters of high speed pick and place machine
Model number | HT-X9 |
Dimension | 2450*2100*1550mm |
PCB size | 250mm*any length |
PCB thickness | 0.5~1.5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components space | 0.2mm |
NO.of feedings station | 64pcs |
NO.of nozzles | 64pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | any length |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
Air Force | 0.5mpa |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
3.Packing & shipping of smt mounter machine
Packaging materials | Waterproof material and wooden case |
Lead time | Delivery within 30 days after receipt of payment.. |
port | Shenzhen |
Delivery time | Transshipment and partial shipment according to the contract |
4.Company profile
5.Our Our certificates and certifications
6.our services
7. trade show
(1) Single panel: On the most basic PCB, the parts are concentrated on one side and the wires on the other side. because the wire only appears on one side.
(2) Double panel: This circuit board has wiring on both sides, but to use the wire on both sides, it is necessary to have a proper circuit connection between the two sides. A "bridge" between these circuits is called a guide hole (via). A guide hole is a small hole filled or coated with metal on a PCB, which can be connected to a wire on both sides.
(3) Multi-layer board: In order to increase the area that can be wired, the multilayer board uses more single or double-sided wiring boards. A printed circuit board with one double-sided inner layer, two single-sided outer layer or two double-sided printed circuit boards with two single-sided printed circuit boards with one side as inner layer and two single-sided printed circuit boards with one side as outer layer.
